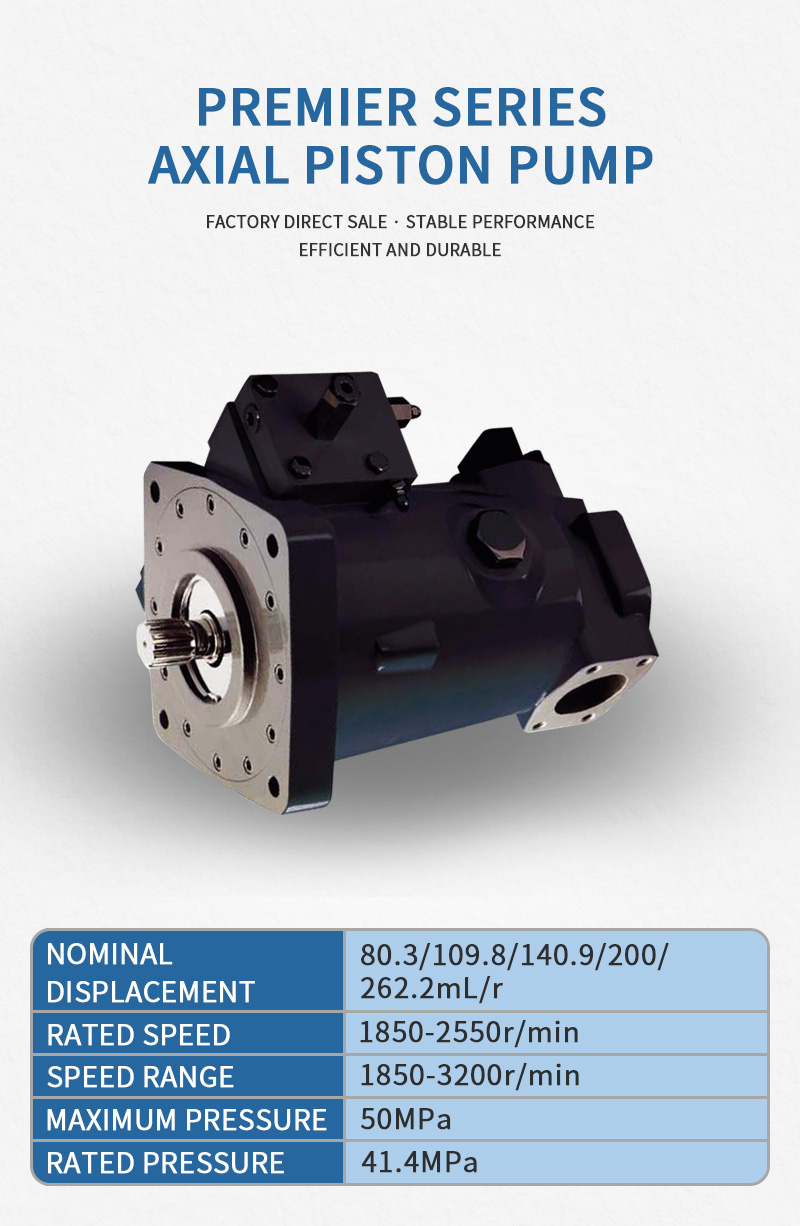

Parker Denison Premier P200 Hydraulic Pump: The Workhorse for Underground Mining Equipment
In the world of underground mining, hydraulic reliability isn’t a luxury—it’s a matter of safety and production. From load-haul-dump (LHD) vehicles to roof bolters and conveyor drives, mining equipment demands pumps that deliver massive flow at extreme pressures while surviving dust, water, and explosive gases. The Denison Premier P200 pump—also known as the Parker P200 hydraulic pump—meets these demands with a 200 cm³/rev displacement, continuous pressure up to 500 bar (7250 psi intermittent), and a flexible 2100–2700 rpm speed range. This is the pump that keeps mines moving.

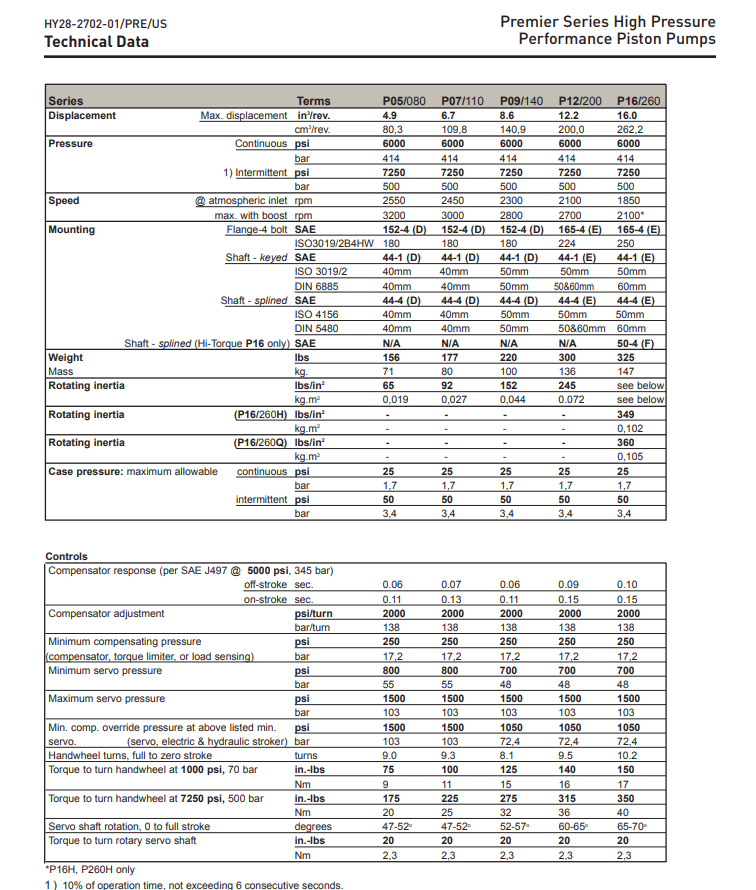

Technical Specifications – Denison Premier P200
| Parameter | Value |
|---|---|
| Model | P200 |
| Max. Displacement | 200 cm³/rev |
| Continuous Pressure | 414 – 500 bar |
| Intermittent Pressure | 6000 – 7250 psi |
| Speed Range @ Full Stroke | 2100 – 2700 rpm |
| Circuit Type | Open circuit |
| Warranty | 12 months |
| Technical PDF | www.baolilai-pump.com/contact_us/ |
Why the P200 is the Backbone of Mine Hydraulics
Massive Flow for Heavy-Duty Functions
The P200’s 200 cc/rev displacement moves over 500 L/min at 2700 rpm. This makes it ideal for:
LHD steering & braking: Instant response in narrow drifts.
Roof support pumps: Simultaneous leg extension on longwall faces.
Conveyor drives: Sustained torque for continuous material movement.
500 Bar – No Pressure Drop Under Load
When an LHD loads a 10-ton bucket or a roof bolter tensions resin anchors, pressure spikes are inevitable. The P200’s gold cup rotating group—with floating valve plate and hardened piston shoes—absorbs 7250 psi shocks without internal leakage. Continuous 500 bar rating means full power hour after hour.
Explosion-Proof & Contamination-Tough
Underground coal and potash mines contain methane or combustible dust. The P200 is built with spark-resistant internals and sealed housings, meeting ATEX/MSHA standards. Double shaft seals keep abrasive rock dust, water, and mud out—critical for equipment operating in wet, dirty conditions.
Thermal Stability Across Extremes
Operates from –30°C to 115°C. Reliable starts in frozen drifts and cool running in deep, hot stopes.
Key Mining Applications for the P200
| Equipment Type | Role of P200 | Benefit |
|---|---|---|
| Sandvik LHDs | Steering, braking, fan drive | Explosion-proof, 500 bar continuous |
| Atlas Copco / Epiroc jumbos | Feed & rotation circuits | Handles 7250 psi spikes from percussive drilling |
| Longwall roof supports | Leg extension & retraction | High flow for simultaneous cylinder operation |
| Underground conveyors | Drive motor supply | Sustained torque, contamination resistant |
Official manufacturer resources: atlascopco.com | epiroc.com | sandvik.com
What You Get – Baolilai Support
12-month warranty – covers cylinder block, valve plate, pistons, seals, bearings.
Free replacement parts – within warranty, we ship failed components at no cost (local labor not included).
Remote video support – factory engineers guide installation, troubleshooting, and repair via video call.
Explosion-proof design – safe for hazardous underground environments.
Extreme environment toughness – field-proven in mines worldwide.
FAQ – Denison Premier P200 Pump
Q1: How does the P200 compare to the P16 or P140 Premier pumps?
The P200 has 200 cc/rev displacement—larger than the P140 (140.9 cc) but smaller than the P16 (262.2 cc). It’s ideal for applications requiring higher flow than the P140 but a more compact package than the P16. Speed range (2100–2700 rpm) is optimized for mining equipment engine speeds.
Q2: Can the P200 be used in mobile equipment other than mining?
Yes. It’s also found in large excavators, concrete pumps, and industrial presses where high flow at 500 bar is required.
Q3: How does the free parts replacement work?
Within 12 months, if a covered part fails, send evidence (photo/video). We verify and ship the replacement free. Remote video support helps your technician install it.
Q4: Why is 500 bar continuous pressure critical for LHD steering?
LHDs operate in tight spaces where steering must be instantaneous and powerful. A 500 bar pump maintains full steering assist even when the engine is at low RPM; lower-rated pumps can cause sluggish response.
Q5: Can the P200 run on fire-resistant fluids?
Yes – with optional FKM seals, it handles HFC (water-glycol) and HFD (phosphate ester) fluids used in underground coal mines.
Q6: Where can I find official service manuals for my Sandvik or Epiroc machine?
Visit sandvik.com (Parts & Services), epiroc.com (Technical Support), or atlascopco.com (legacy).
The Bottom Line
The Denison Premier P200 pump (Parker P200 hydraulic pump) delivers 200 cc/rev displacement, up to 500 bar continuous pressure, and a 2100–2700 rpm speed range. Engineered for the harshest mining applications—LHDs, jumbos, roof supports, and conveyors—it withstands pressure spikes, explosive dust, and extreme temperatures. Backed by a 12-month warranty, free replacement parts, and remote video support, it’s the high-flow hydraulic solution you can trust for underground productivity. Download the full technical datasheet at www.baolilai-pump.com.
Specificatio
| Internal Number | Nameplate Model |
| 022836370 | P200H2L1DL1000 |
| 022826190 | P200H2R1DC1000 |
| 022837630 | P200H2R1DC1000NP |
| 022832870 | P200H2R1DL1000 |
| 022826195 | P200H2R5DC1000 |
| 022833940 | P200H3L1DC10A0 |
| 022833930 | P200H3L1DC10R0 |
| 022839470 | P200H3L1DE1PA0 |
| 022840270 | P200H3L1DL1000 |
| 022851940 | P200H3R1DC1000 |
| 022868060 | P200H7R1DE1P00 |
| 022826260 | P200Q2R1DC1000 |
| 022845810 | P200Q2R1DC10B0 |
| 022846480 | P200Q2R1DE1000 |
| 022838270 | P200Q2R1DE1JA0 |
| 022832210 | P200Q2R1DE1KA0 |
| 022867950 | P200Q2R1DE1P00 |
| 022833900 | P200Q2R1DE1PA0 |
| 022833910 | P200Q2R1DE1PT0 |
| 022833920 | P200Q2R1DE1PU0 |
| 022841010 | P200Q2R1DH5PB0 |
| 022-82627-0 | P200Q2R1DJ1000 |
| 022826270 | P200Q2R1DJ1000 |
| 022851590 | P200Q2R1DJ1000NP |
| 022831530 | P200Q2R1DJ2000 |
| 022846100 | P200Q2R1DJ5000 |
| 022830610 | P200Q2R1DK1000 |
| 022885650 | P200Q2R1DK50C0 |
| 022841420 | P200Q2R1DL1000 |
| 022841320 | P200Q2R1DL10C0 |
| 022832660 | P200Q2R1DV10A0 |
| 022826264 | P200Q2R4DC1000 |
| 022867954 | P200Q2R4DE1P00 |
| 022848184 | P200Q2R4DE1PB0 |
| 022826265 | P200Q2R5DC1000 |
| 022851930 | P200Q3R1DC1000 |
| 022-86576-0 | P200Q3R1DE1PB0 |
| 022865760 | P200Q3R1DE1PB0 |
| 022848340 | P200Q3R1DW1000 |
| 022-83214-0 | P200Q6R1DC1000 |
| 022832140 | P200Q6R1DC1000 |
| 022-83216-0 | P200Q6R1DE1000 |
| 022832160 | P200Q6R1DE1000 |
| 022853880 | P200Q6R1DH1P00 |
| 022853550 | P200Q6R1DH1PA0 |
| 022853764 | P200Q6R4DC2000 |
| 022-83214-5 | P200Q6R5DC1000 |
| 022832145 | P200Q6R5DC1000 |
| 022838075 | P200Q6R5DC8000 |
| 022832165 | P200Q6R5DE1000 |
| 022830960 | P200Q7R1DE1PA0 |
| 022836430 | P200Q9R1DJ1000 |
