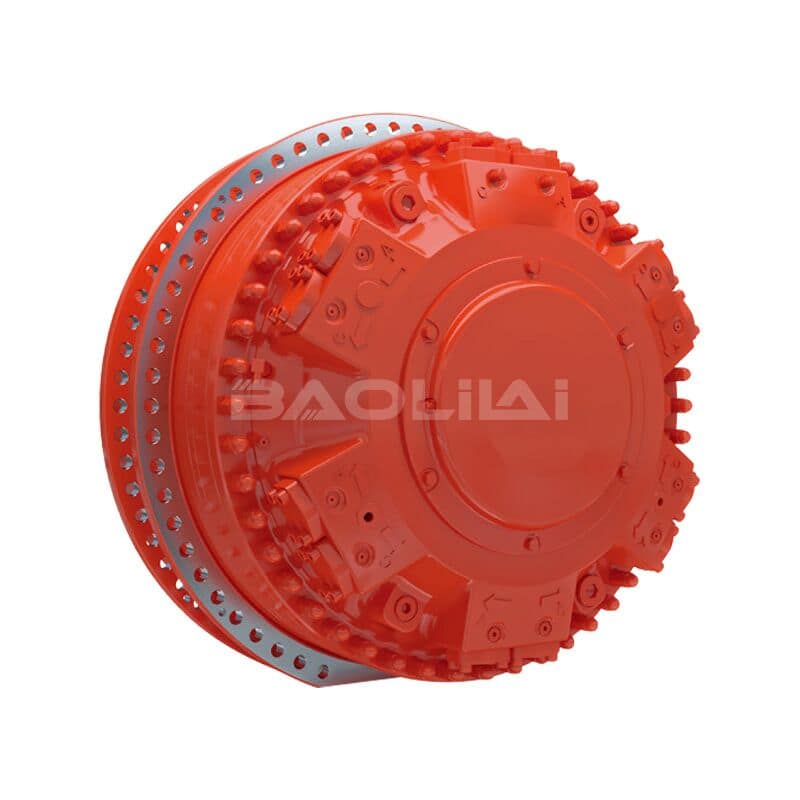

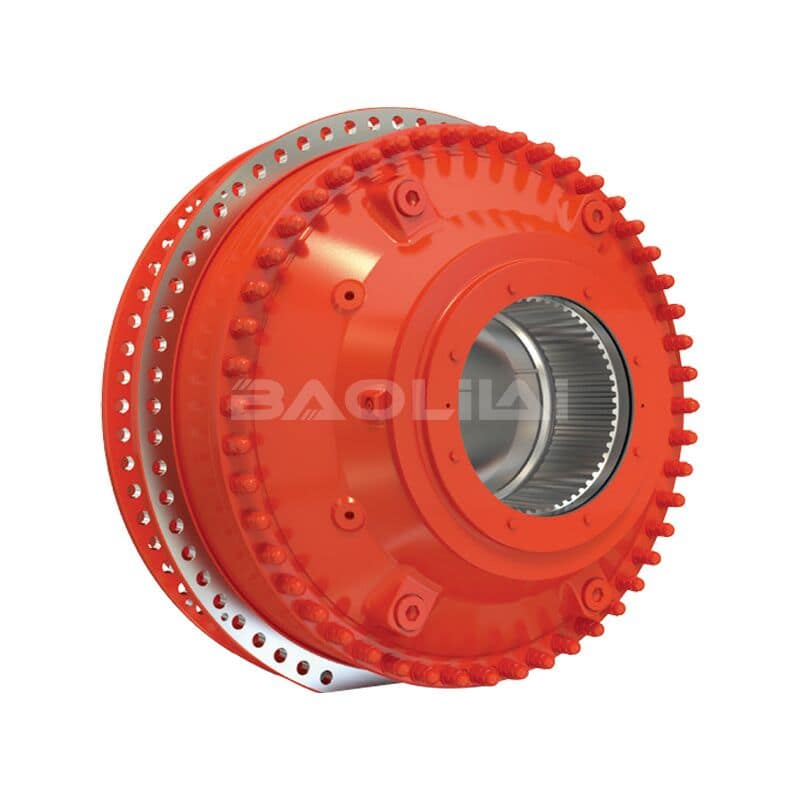

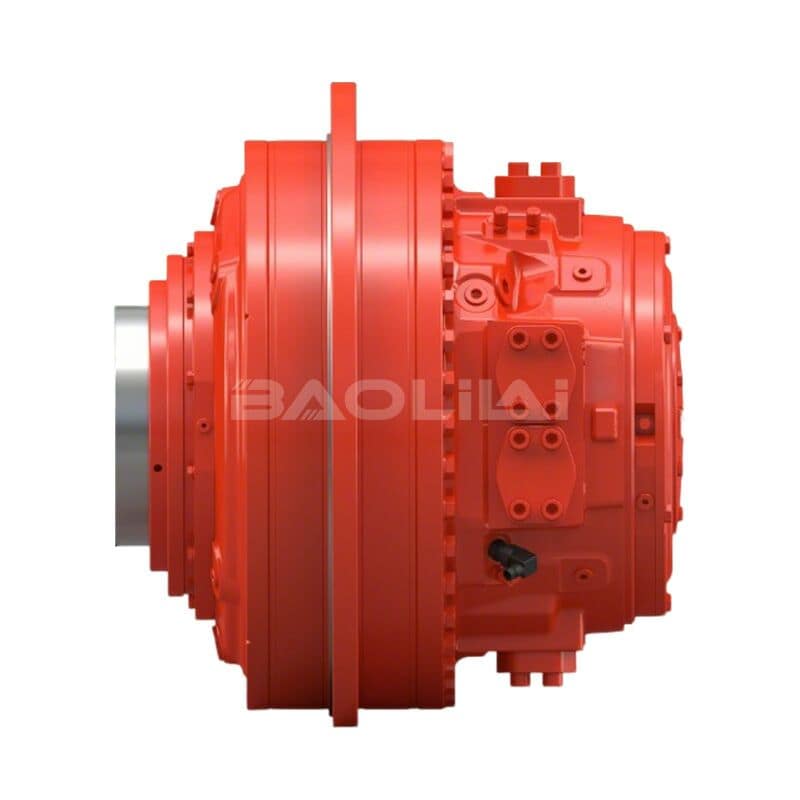

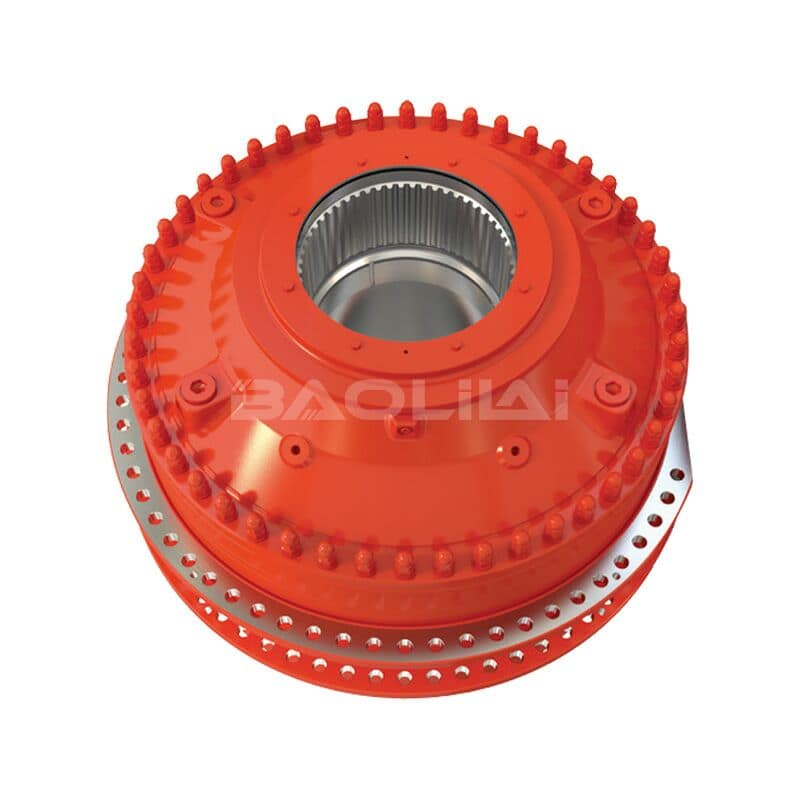

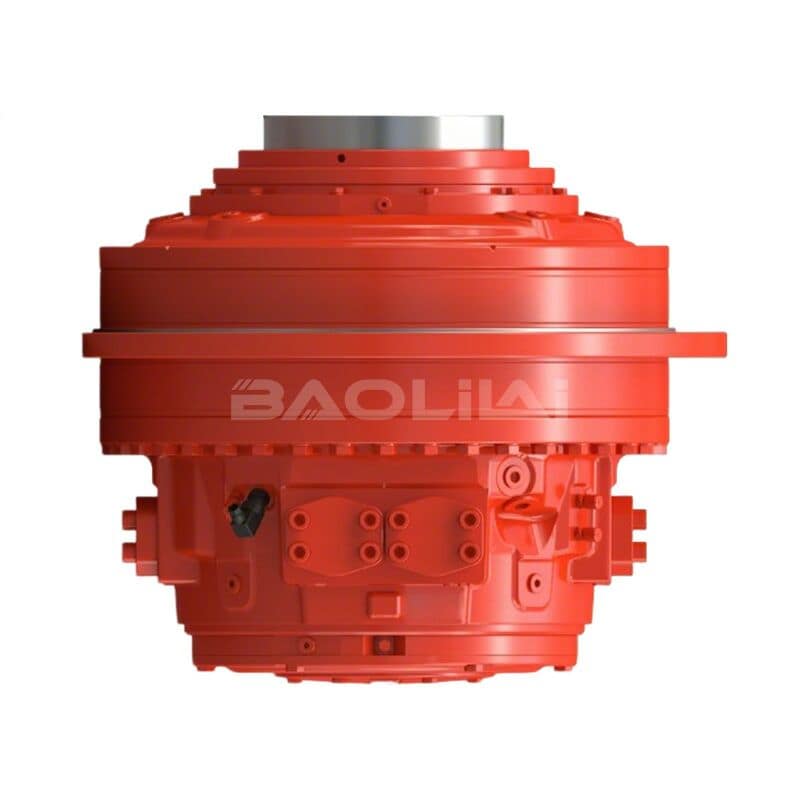

Hägglunds CBP 560 series radial piston hydraulic motor CBP 560 440 CBP 560 480 CBP 560 520 CBP 560 560 radial motors for Liebherr R9450 mining excavator
Hägglunds CBP 560 Series Radial Piston Hydraulic Motors — Precision Power for Demanding Industrial Applications
The Hägglunds CBP 560 Series Radial Piston Hydraulic Motor represents a new generation of high-torque, low-speed power units designed for the most rigorous hydraulic applications. Manufactured with advanced engineering standards, it delivers exceptional reliability, mechanical strength, and stability under extreme operating pressures. At BAOLILAI Hydraulic (https://www.baolilai-pump.com), we specialize in producing and supplying world-class hydraulic motors and pumps that drive the backbone of modern heavy machinery.
This series includes the Hägglunds CBP 560 440 Motor, Hägglunds CBP 560 480 Motor, Hägglunds CBP 560 520 Motor, and Hägglunds CBP 560 560 Motor—each engineered for precision control, operating within 115–400 rpm speed range and designed for pressures between 350–420 bar. With a robust mechanical frame, the CBP 560 motors ensure maximum torque transfer while maintaining long service life and energy efficiency.
⚙️ Technical Specification Table
| Model | Frame Size | Speed Range (rpm) | Pressure (bar) | Warranty |
|---|---|---|---|---|
| Hägglunds CBP 560 440 | 440 | 115–400 | 350–420 | 1 Year |
| Hägglunds CBP 560 480 | 480 | 115–400 | 350–420 | 1 Year |
| Hägglunds CBP 560 520 | 520 | 115–400 | 350–420 | 1 Year |
| Hägglunds CBP 560 560 | 560 | 115–400 | 350–420 | 1 Year |
📘 For full technical PDFs, please visit:
👉 https://www.baolilai-pump.com/contact_us/
🔧 Engineering for Strength and Endurance
The Hägglunds CBP 560 radial piston motor series is engineered with anti-pressure, anti-explosion, and anti-fatigue construction, ensuring safe operation under the harshest industrial and environmental conditions. Built using high-tensile alloy materials and precision machining, the motor demonstrates unmatched resistance to vibration, temperature fluctuations, and contamination—ideal for prolonged use in 24/7 operations.
Its internal radial piston mechanism delivers high torque output at low rotational speeds, providing smoother operation and superior control in hydraulic transmission systems. This makes the CBP 560 Series ideal for machinery that demands power stability, such as crushers, conveyors, and winches in the mining and construction sectors.
The product’s one-year warranty offered by BAOLILAI Hydraulic ensures quality confidence and reliable after-sales support for global industrial customers.
🏗️ Applications Across Global Machinery Brands
The Hägglunds CBP 560 Series is widely used in agricultural, mining, and construction machinery due to its adaptability and consistent performance. It has been successfully integrated into the following equipment examples:
- Caterpillar 988K Wheel Loader (www.cat.com) – for high-torque earthmoving operations
- Volvo EC750E Excavator (www.volvoce.com) – ensuring smooth hydraulic motion control
- Komatsu HD785 Mining Truck (www.komatsu.com) – powering hydraulic drive systems
- John Deere 8R Tractor (www.deere.com) – optimizing field productivity
- Liebherr R9450 Mining Excavator (www.liebherr.com) – delivering strong hydraulic actuation
- Hitachi ZX890LCH Excavator (www.hitachicm.com) – supporting continuous-duty excavation work
- Case IH Steiger 620 Tractor (www.caseih.com) – for large-scale agricultural torque transmission
Each application benefits from the CBP 560’s optimized energy transfer, reduced downtime, and superior torque-to-weight ratio, making it a top performer in global hydraulic systems.
🌍 Performance Advantages
- High Torque & Smooth Operation – Ideal for low-speed, heavy-duty machinery.
- Pressure Resistance – Maintains efficiency under continuous 420 bar operations.
- Explosion-Proof Design – Engineered for hazardous or high-temperature environments.
- Durability in Harsh Conditions – Performs in mining, agriculture, and offshore applications.
- Easy System Integration – Compatible with a wide range of industrial hydraulic systems.
- One-Year Global Warranty – Backed by BAOLILAI’s strict quality control.
❓ Frequently Asked Questions (FAQ)
Q1: What industries commonly use the Hägglunds CBP 560 Radial Piston Motor?
A1: The motor is widely used in construction, agriculture, marine, and mining machinery that require sustained torque output, such as crushers, conveyors, and drilling rigs.
Q2: How does the CBP 560 maintain performance under high pressure?
A2: Its radial piston design and precision-sealed components ensure continuous operation at 350–420 bar without efficiency loss or overheating.
Q3: What makes BAOLILAI Hydraulic motors unique?
A3: BAOLILAI focuses on OEM-level precision manufacturing, high-torque performance, and durability, ensuring every motor meets international quality standards.
Q4: How can I get the full product data and drawings?
A4: You can request the complete Hägglunds CBP 560 PDF datasheet by visiting https://www.baolilai-pump.com/contact_us/.
The Hägglunds CBP 560 Series Radial Piston Hydraulic Motor delivers reliability, strength, and power efficiency that define excellence in industrial hydraulics. From construction sites to agricultural fields and mining operations, BAOLILAI Hydraulic (https://www.baolilai-pump.com) continues to empower global machinery with performance-driven hydraulic solutions that stand the test of time.
| Order Number | Internal Number |
| R939001783 | Hägglunds CBP 560 440 SA0V00C 00 00 |
| R939001785 | Hägglunds CBP 560 440 SA0V00F 00 00 |
| R939003523 | Hägglunds CBP 560 440 SA0V0CC 00 00 |
| R939003529 | Hägglunds CBP 560 440 SA0V0CF 00 00 |
| R939001782 | Hägglunds CBP 560 440 SA0VH0C 00 00 |
| R939001784 | Hägglunds CBP 560 440 SA0VH0F 00 00 |
| R939003520 | Hägglunds CBP 560 440 SA0VHCC 00 00 |
| R939003526 | Hägglunds CBP 560 440 SA0VHCF 00 00 |
| R939003522 | Hägglunds CBP 560 440 SB0V00C 00 00 |
| R939003528 | Hägglunds CBP 560 440 SB0V00F 00 00 |
| R939003524 | Hägglunds CBP 560 440 SB0V0CC 00 00 |
| R939003530 | Hägglunds CBP 560 440 SB0V0CF 00 00 |
| R939003519 | Hägglunds CBP 560 440 SB0VH0C 00 00 |
| R939003525 | Hägglunds CBP 560 440 SB0VH0F 00 00 |
| R939003521 | Hägglunds CBP 560 440 SB0VHCC 00 00 |
| R939003527 | Hägglunds CBP 560 440 SB0VHCF 00 00 |
| R939001779 | Hägglunds CBP 560 480 SA0V00C 00 00 |
| R939001781 | Hägglunds CBP 560 480 SA0V00F 00 00 |
| R939003511 | Hägglunds CBP 560 480 SA0V0CC 00 00 |
| R939003517 | Hägglunds CBP 560 480 SA0V0CF 00 00 |
| R939001778 | Hägglunds CBP 560 480 SA0VH0C 00 00 |
| R939001780 | Hägglunds CBP 560 480 SA0VH0F 00 00 |
| R939003508 | Hägglunds CBP 560 480 SA0VHCC 00 00 |
| R939003514 | Hägglunds CBP 560 480 SA0VHCF 00 00 |
| R939003510 | Hägglunds CBP 560 480 SB0V00C 00 00 |
| R939003516 | Hägglunds CBP 560 480 SB0V00F 00 00 |
| R939003512 | Hägglunds CBP 560 480 SB0V0CC 00 00 |
| R939003518 | Hägglunds CBP 560 480 SB0V0CF 00 00 |
| R939003507 | Hägglunds CBP 560 480 SB0VH0C 00 00 |
| R939003513 | Hägglunds CBP 560 480 SB0VH0F 00 00 |
| R939003509 | Hägglunds CBP 560 480 SB0VHCC 00 00 |
| R939003515 | Hägglunds CBP 560 480 SB0VHCF 00 00 |
| R939001775 | Hägglunds CBP 560 520 SA0V00C 00 00 |
| R939001777 | Hägglunds CBP 560 520 SA0V00F 00 00 |
| R939003499 | Hägglunds CBP 560 520 SA0V0CC 00 00 |
| R939003505 | Hägglunds CBP 560 520 SA0V0CF 00 00 |
| R939053943 | Hägglunds CBP 560 520 SA0V0CF 00 00/ SM& |
| R939059978 | Hägglunds CBP 560 520 SA0V0CF 00 00/SPD& |
| R939001774 | Hägglunds CBP 560 520 SA0VH0C 00 00 |
| R939001776 | Hägglunds CBP 560 520 SA0VH0F 00 00 |
| R939003496 | Hägglunds CBP 560 520 SA0VHCC 00 00 |
| R939003502 | Hägglunds CBP 560 520 SA0VHCF 00 00 |
| R939003498 | Hägglunds CBP 560 520 SB0V00C 00 00 |
| R939003504 | Hägglunds CBP 560 520 SB0V00F 00 00 |
| R939003500 | Hägglunds CBP 560 520 SB0V0CC 00 00 |
| R939003506 | Hägglunds CBP 560 520 SB0V0CF 00 00 |
| R939003495 | Hägglunds CBP 560 520 SB0VH0C 00 00 |
| R939003501 | Hägglunds CBP 560 520 SB0VH0F 00 00 |
| R939003497 | Hägglunds CBP 560 520 SB0VHCC 00 00 |
| R939003503 | Hägglunds CBP 560 520 SB0VHCF 00 00 |
| R939001771 | Hägglunds CBP 560 560 SA0V00C 00 00 |
| R939001773 | Hägglunds CBP 560 560 SA0V00F 00 00 |
| R939003487 | Hägglunds CBP 560 560 SA0V0CC 00 00 |
| R939062351 | Hägglunds CBP 560 560 SA0V0CC 00 00/SPD& |
| R939003493 | Hägglunds CBP 560 560 SA0V0CF 00 00 |
| R939059757 | Hägglunds CBP 560 560 SA0V0CF 00 00 / E& |
| R939001770 | Hägglunds CBP 560 560 SA0VH0C 00 00 |
| R939001772 | Hägglunds CBP 560 560 SA0VH0F 00 00 |
| R939003484 | Hägglunds CBP 560 560 SA0VHCC 00 00 |
| R939003490 | Hägglunds CBP 560 560 SA0VHCF 00 00 |
| R939003486 | Hägglunds CBP 560 560 SB0V00C 00 00 |
| R939003492 | Hägglunds CBP 560 560 SB0V00F 00 00 |
| R939003488 | Hägglunds CBP 560 560 SB0V0CC 00 00 |
| R939003494 | Hägglunds CBP 560 560 SB0V0CF 00 00 |
| R939003483 | Hägglunds CBP 560 560 SB0VH0C 00 00 |
| R939003489 | Hägglunds CBP 560 560 SB0VH0F 00 00 |
| R939003485 | Hägglunds CBP 560 560 SB0VHCC 00 00 |
| R939063141 | Hägglunds CBP 560 560 SB0VHCC 00 00/CBP& |
| R939003491 | Hägglunds CBP 560 560 SB0VHCF 00 00 |
